>Three phase ESS hybrid inverter

Please fill in the email and download the information immediately

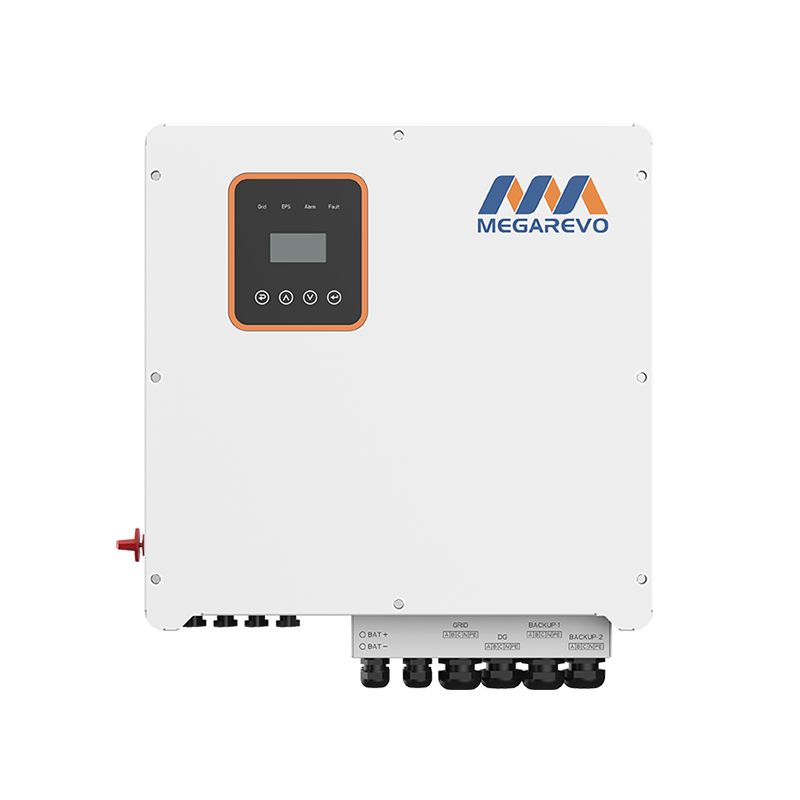

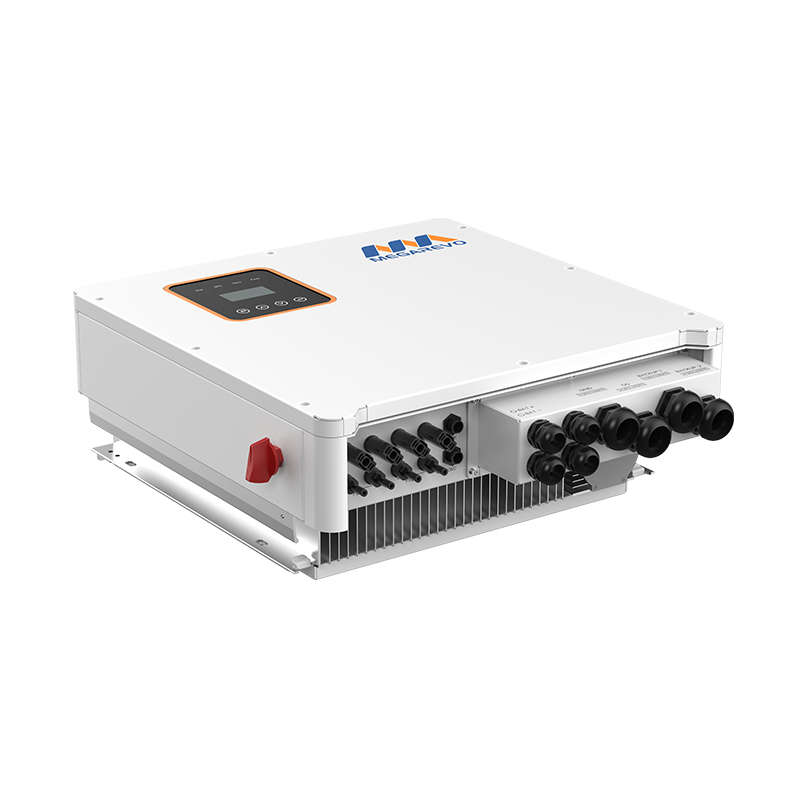

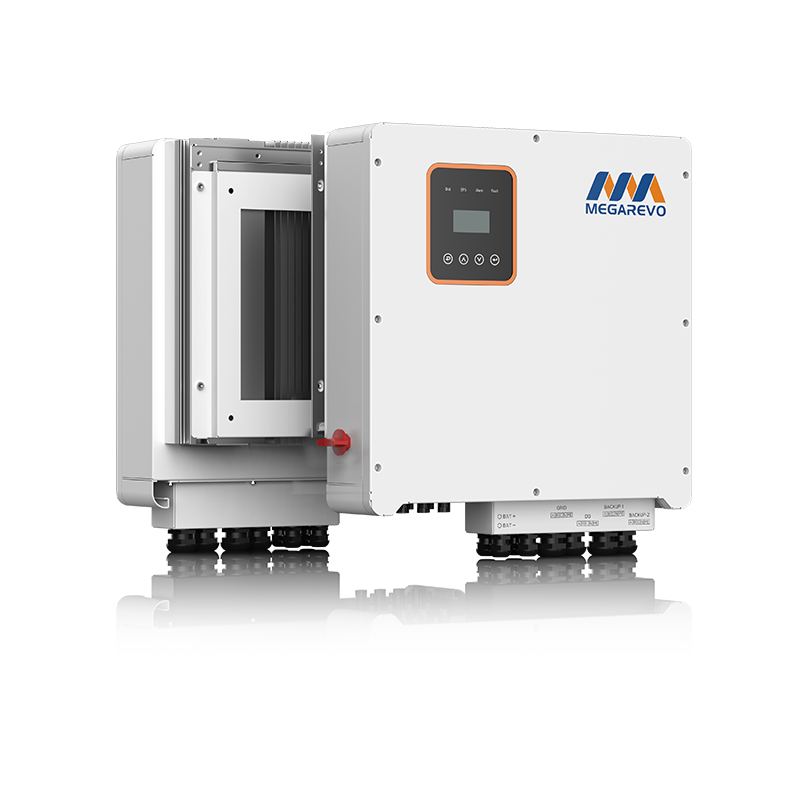

H3 Series 3-phase hybrid inverter has four power rates, including 8kW, 10kW, 12kW and 15kW, compatible with single-phase load and three-phase load and supports 100% unbalanced load. The maximum efficiency can reach 97.9%. 3-phase hybrid inverters are designed to increase energy independence for homeowners.

Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Three phase ESS hybrid inverter
Product Highlights
Safe and reliable
Passed IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-1/-6-3, European grid connection: EN50549-1, German grid connection: VDE4105/0124 , UK grid connection: G99, South Africa: NRS097-2-1:2017 test certification;
Flexible configuration
Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start;
Various working modes can be set flexibly;
Economical and practical
It is more economical to support multiple operating modes;
Can be as a UPS for the important loads when power off;
Choose our benefits

Reduce electricity costs by 50% per year

Free energy available at night

Participate in peak load shifting to gain additional economic benefits

keeping critical load operation in power off

Support 7*24 remote service

DC Input
Max.PV input power (kW)912
Max. PV voltage (V)1,000
MPPT voltage range (V)180~850
Full power MPPT voltage range (V)250~850330~850430~850510~850620~850
Start-up voltage (V)125
Max. input current per MPPT (A)13/13
Max. short-circuit current (A)16/1616/1616/1616/1625/25
Number of MPPT rackers2
MPPT number/ Max. input strings number1/1
Rated input voltage (V)700
AC Output
Nominal output power to grid (kVA)6
Max. apparent power to grid (kVA)6.68.81113.216.5
Max. apparent power from grid (kVA)13.217.62226.433
Max. apparent current from grid (A)19.125.531.838.247.6
Nominal output current to grid (A)8.711.514.417.321.7
Max.output current to grid (A)9.512.715.919.123.8
Nominal grid voltage (V)380/400,3W+N+PE
Nominal grid frequency (Hz)50/60
Max.charging /discharging Power (kW)6.68.81113.216.5
Battery voltage range (V)125~600
Battery working voltage range (V)150~550
Max.charging /discharging current (A)50
Rated.charging /discharging current (A)40
Battery typeLithium and Lead Acid Battery
EPS output
Nominal output power (kVA)88101215
Max. apparent power (kVA)8.88.81113.216.5
Nominal output current (A)8.711.514.417.321.7
Max.output current (A)9.512.715.919.123.8
Nominal output voltage (V)400 ,3W+N+PE
Nominal output frequency (Hz)50/60
Europe efficiency97.2%97.2%97.5%97.5%97.8%
MPPT efficiency99.9%
Max.battery charge/discharge efficiency97.5%97.5%97.5%97.6%97.8%
General Data
Ingress protectionIP65
Operating temperature range (℃)-25~60
Relative humidity0~100%
Operating altitude (m)4,000 (>2,000 Derating)
Dimensions W*H*D (mm)596*566*220
Weight (kg)32
Noise emission (dB)≤25
EMCIEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021, IEN/EN 61000-6-4:2019, IEC/EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021, IEC/EN 61000-3-11:2019, EN 61000-3-12:2011
On-gridEurope: EN 50549-1:2019/AC:2019, Poland:EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany: VDE-AR-N 4105:2018 /DIN VDE V 0124-100(VDE V 0124-100):2020, South Africa: NRS 097-2-1:2017 Edition 2.1, UK:G98/G99/1-6:2022, Spain:UNE217001:2020 /UNE217002:2020/NTS V2.1:2021-07, IEC61727:2004/IEC62116:2014/IEC61683:1999, Hungary:EN50549-1:2019/RFG:2016/Hungary, Italy CEI 0-21
Safety standardIEC/EN62109-1:2010, IEC/EN62109-2:201
Display and communication
Supported communication interfaceWIFI / GPRS
