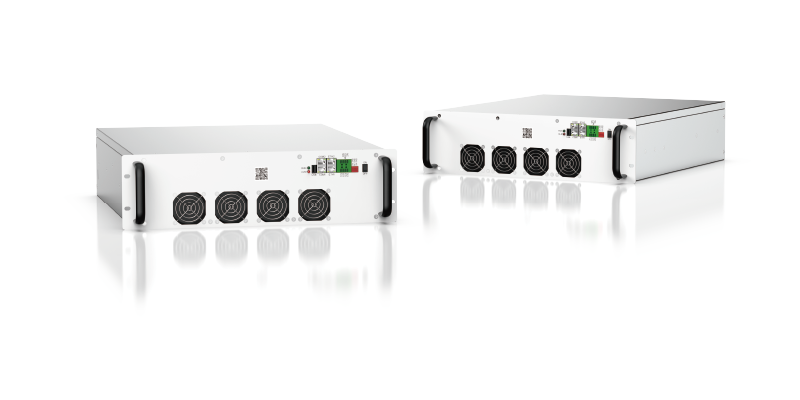

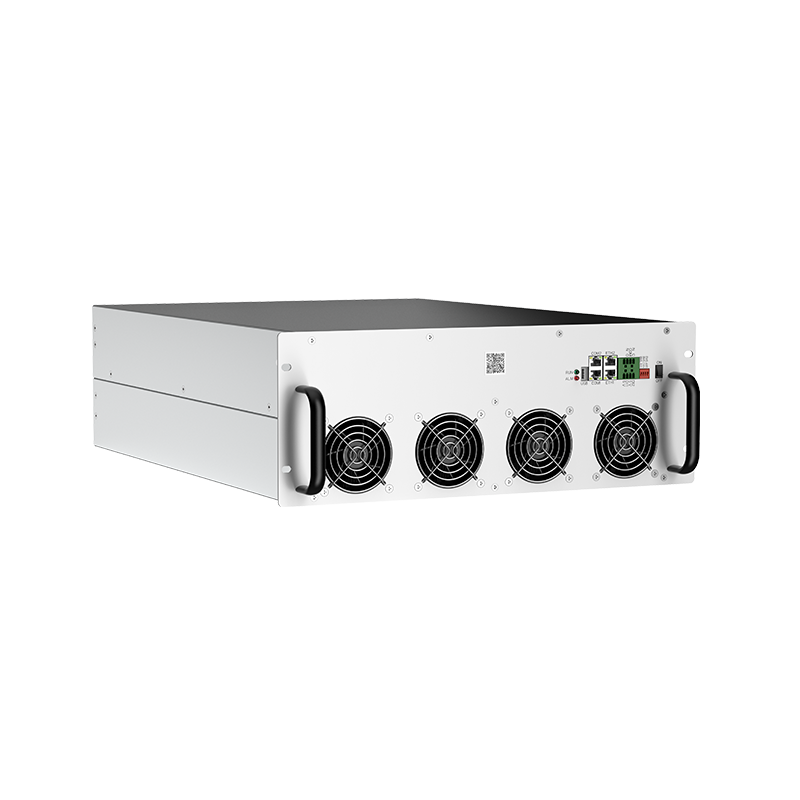

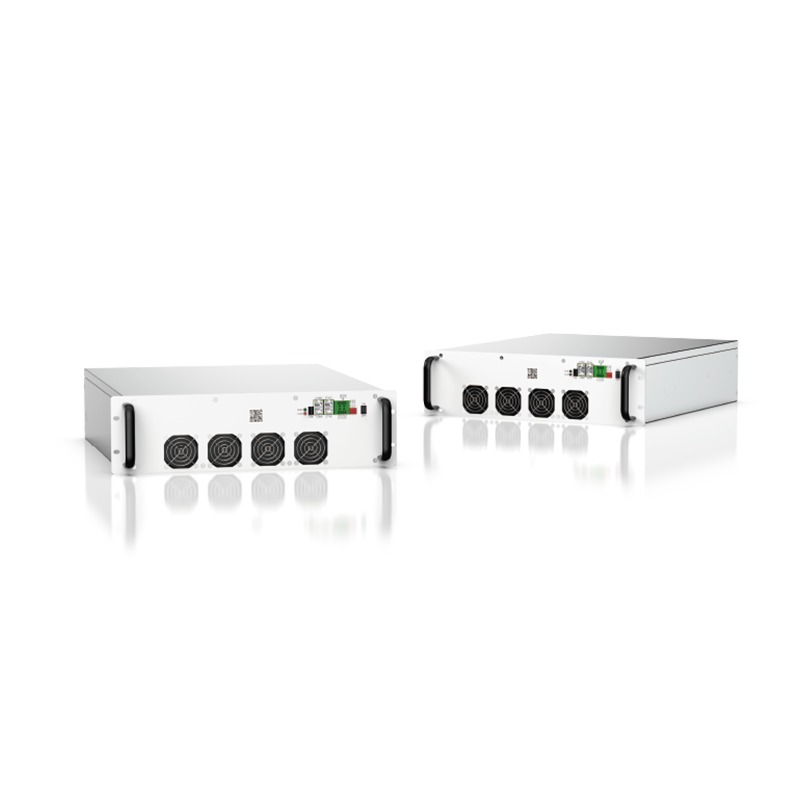

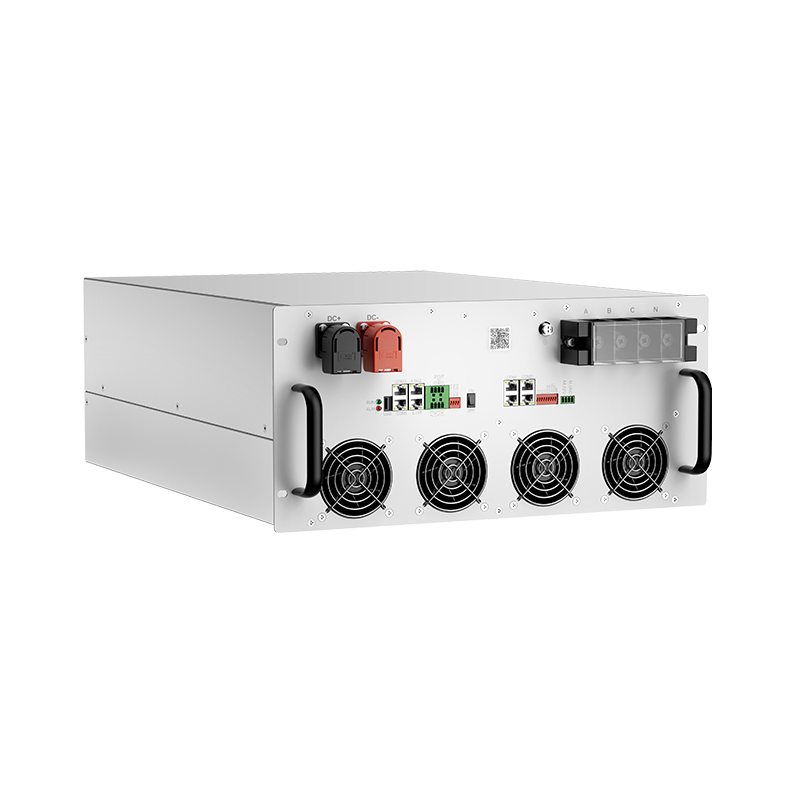

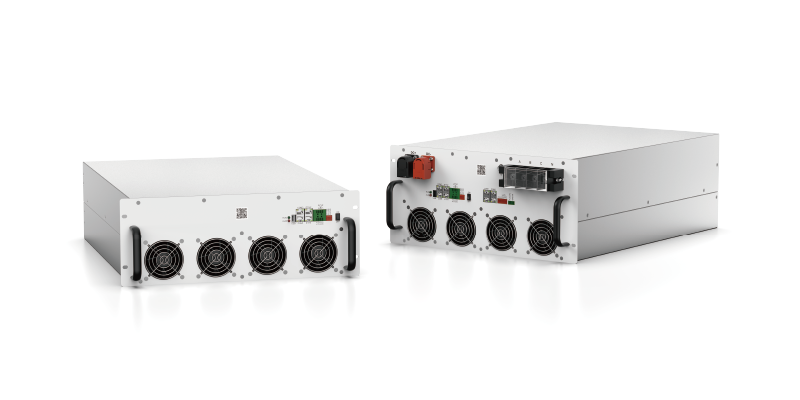

PMA series energy storage converter adopts modular design, it supports power module independent operation and parallel operation, it has flexible system configuration, easy to use, suitable for on-grid small-scale industrial and commercial.

PM modular  series - PMA model
PM modular  series - PMA model
PM modular  series - PMA model
PM modular  series - PMA model
PM modular  series - PMA model
PM modular  series - PMA model
PM modular  series - PMA model
PM modular  series - PMA model
Product Highlights
Highly efficient and intelligent
Leading three-level space vector modulation SVPWM with wide voltage range charging and discharging for parallel operation of multiple machines.
Leading midpoint balance technology, with DC component adjustment and low-frequency pulse current in the bypass bus, can prolong battery life and improve unbalanced and nonlinear adaptability.
Safe and reliable
Intelligent electrical protection with fault isolation and fast breaking.
Multiple safety protection with SPD ISO GFCI monitoring function and intelligent electrical protection linkage.
Simple and flexible
Standard power capacity modules are adapted to standard energy storage cell clusters.
19-inch 3U standard size design, support horizontal/vertical installation.
Application

Peak Load Shifting

Demand Side Management

Emergency Power Supply

Dynamic Expansion

ModelPMA060PMA0100
DC(battery)
Max. DC power (kW)75126
DC voltage range (V)700~950(720~900 full load)
Max. DC current (A)±110±180
Voltage stabilization accuracy±1%
Current stabilization accuracy±2%
AC(on-grid)
Rated AC power (kW)62.5105
Max. AC power (kW)75126
Voltage scale3W+PE
Rated voltage (V)480
Rated AC current (A)75126
Max. AC current (A)90150
THDi<3%
Allowable grid voltage range (V)480±15%
Allowable grid frequency range (Hz)60/50±2.5
Power factor adjustment range-1~+1
Active power accuracy1%
Reactive power accuracy2%
System
Max. efficiency98.5%98.7%
Charge/Discharge switching time (ms)<20
Protection degreeIP20
Relative humidity<95% (Non-condensing)
Operating temperature range-30~60 (derating over 45℃)
Max. operating altitude5,000m(>3,000m Derating)
Communication interfaceRS485/CAN/Ethernet
BMS/EMS accessYes
Dimensions (W*D*H)(mm)440*550*133
Weight(Kg)3040


ModelPMA080PMA0105PMA0125
DC(battery)
Max. DC power (kW)96126150
DC voltage range (V)615~950Vdc(3W+PE)/650~950Vdc(3W+N+PE)
DC full load voltage range (V)650~950Vdc(3W+PE)/680~950Vdc(3W+N+PE)
Max. DC current (A)±150±195±230
Voltage stabilization accuracy±1%
Current stabilization accuracy±2%
AC(on-grid)
Rated AC power (kW)80105125
Max. AC power (kW)96126150
Voltage scale3W+PE or 3W+N+PE
Rated voltage (V)400
Rated AC current (A)115150180
Max. AC current (A)138180216
THDi<2%
Allowable grid voltage range (V)400±15%
Allowable grid frequency range (Hz)50±2/60±2
Power factor adjustment range-1~+1
AC(off-grid)
Rated AC power (kW)80105125
Max. output current (A)138180216
Max. AC power (kWA)96126150
Rated voltage (V)230/400
Rated frequency (Hz)50Hz/60
Voltage accuracy±1%
Frequency accuracy(50Hz/60Hz ±0.1%)Hz
THDV3% (linear load)
Unbalanced load capacitySupports 100% single-phase unbalance
Overload capacity≤110%,continuous ;≤120%,2min ;>120%,200ms
System
Max. efficiency98.7%
Charge/Discharge switching time (ms)<20
Protection degreeIP20 (power compartment)    IP6X (control compartment)
Relative humidity<95% (Non-condensing)
Operating temperature range-30~60 (derating over 45℃)
Max. operating altitude5,000m(>3,000m Derating)
Communication interfaceRS485/CAN/Ethernet
BMS/EMS accessSupport
Dimensions (W*D*H)(mm)

483*680*174 19inch 4U

483*680*220 19inch 5U

483*680*174 19inch 4U

483*680*220 19inch 5U

584*680*174 23inch 4U

584*680*220 23inch 5U

Gross weight (kg)

48(back wiring)

50(front wiring)

48(back wiring)

50(front wiring)

58(back wiring)

60(front wiring)
