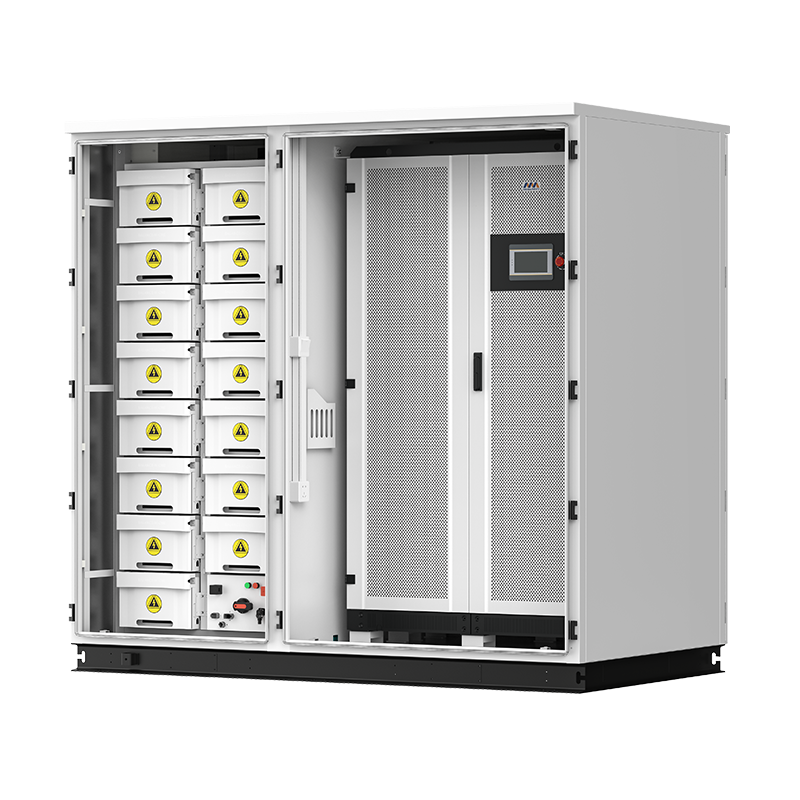

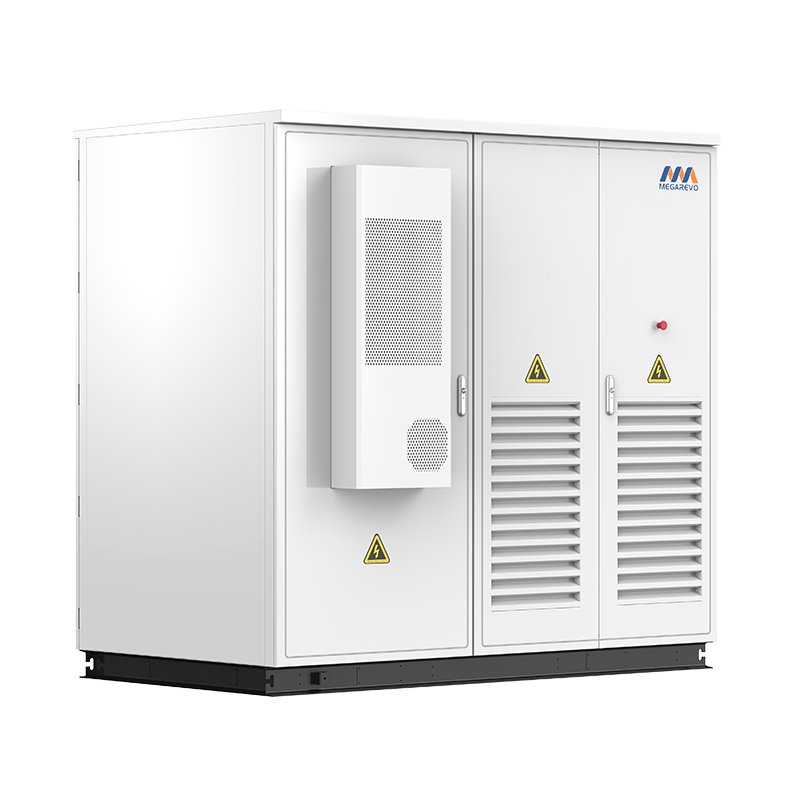

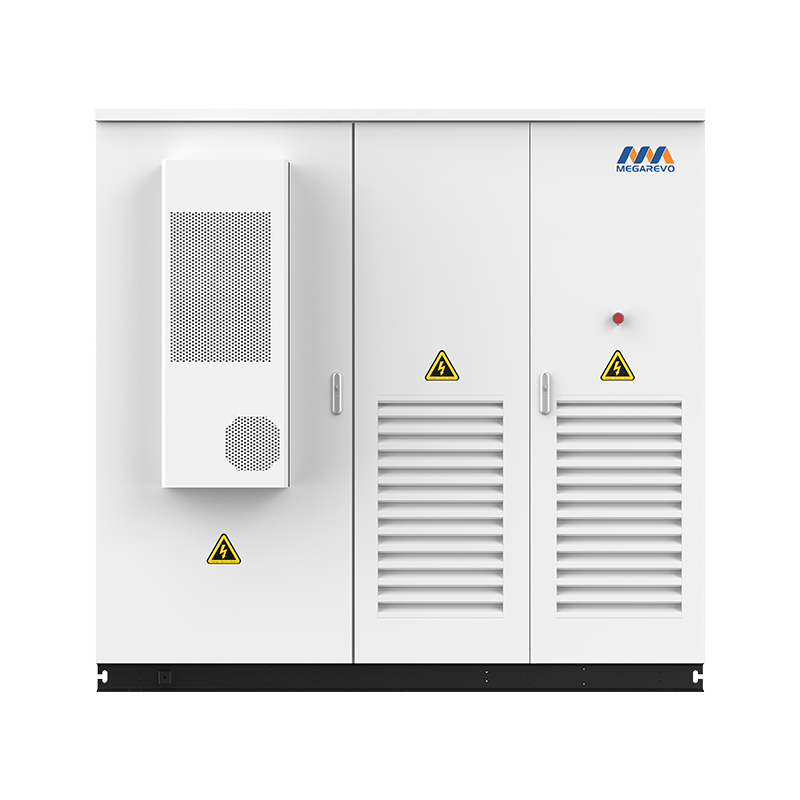

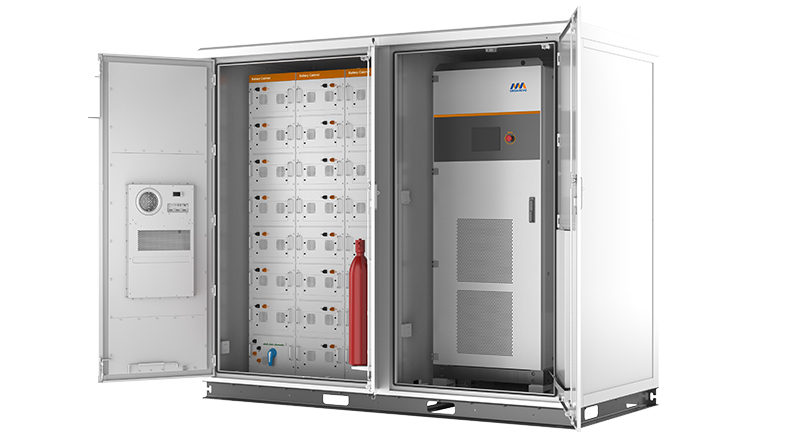

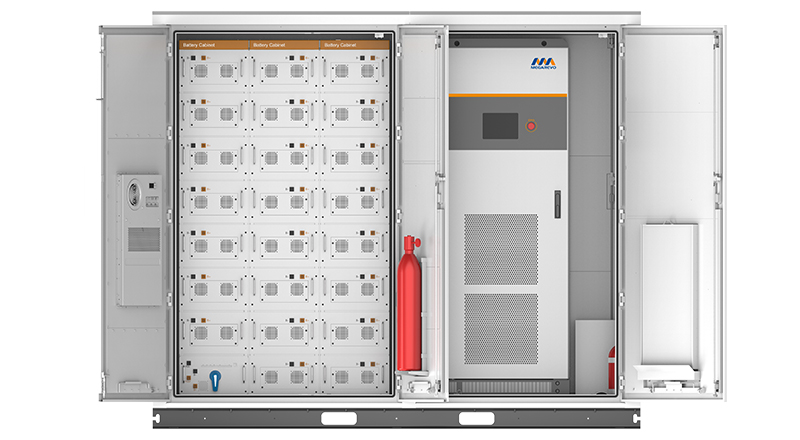

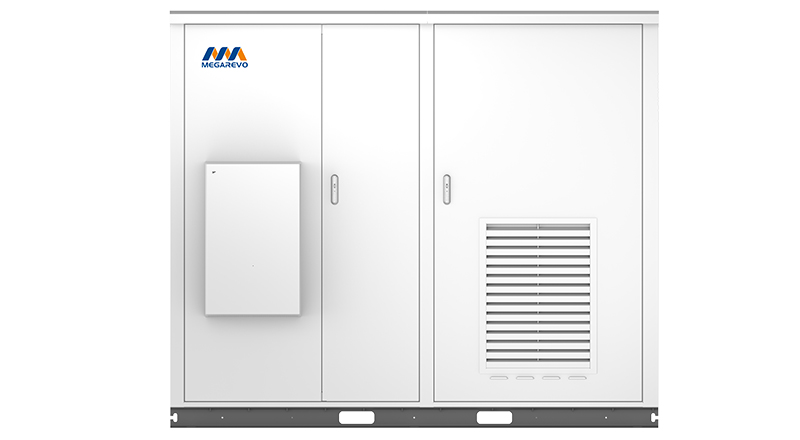

Outdoor cabinet energy storage system is a compact and flexible ESS designed by Megarevo based on the characteristics of small C&I loads. The system integrates

core parts such as the battery units, PCS, fire extinguishing system, temperature control systems, and EMS systems. It can meet the capacity requirements of 100kWh~200kWh.

Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Outdoor cabinet type energy storage system
Product Highlights
Simple and flexible
High integration, small size, easy installation, operation and maintenance;
IP54 protection grade, stronger environmental adaptability
Economical &friendly
Reducing the maximum demand electricity cost, with considerable economic benefits;
Supporting peak shaving and valley filling, and dynamic expansion of transformers;
Safe and reliable
Built-in fire extinguishing , temperature control, early warning system multiple security guarantees;
Intelligent control system, which can be connected to the local monitoring system for unified management and control;
Choose our benefits

Integrated design for easy transportation and installation

Reduce system operating costs

Can be used for a variety of backup purposes

Turnkey projects

Support 7*24 remote service

Technical specification
DC(battery)
Battery capacity (kWh)100~200
Number of battery racks1/2
DC voltage range(V)420~850
AC data
Rated AC power(kW)30~150
Rated AC current(A)43~216
Rated grid voltage(V)400
Rated grid frequency(Hz)50/60
Power factor1lagging-1leading
General Data
BMS communication modeCAN, RS485
EMS communication modeRS485, TCP/IP
