MEGA series isolated energy storage converter is developed based on the application requirements of large C&I such as peak load shifting, battery backup, etc. It adopts full

digital control technology, integrates the leading technological achievements of contemporary power electronics, and the highest efficiency of the product reaches 97.5%; Support multi-machine parallel function, can meet the power demand of 30KW~3MW.

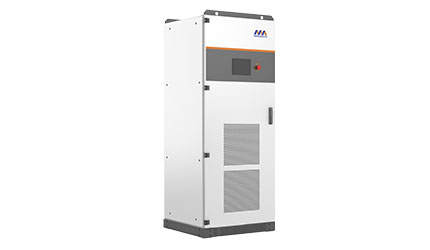

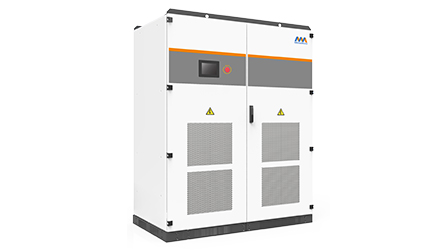

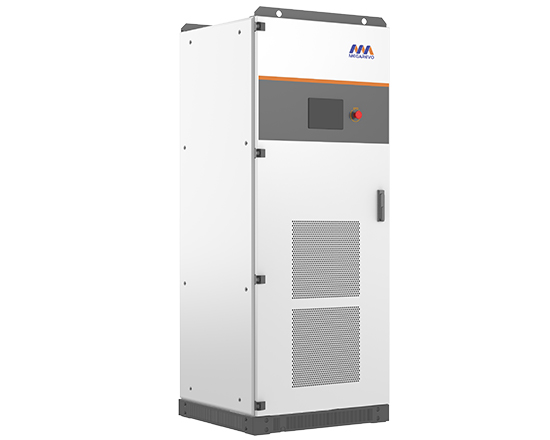

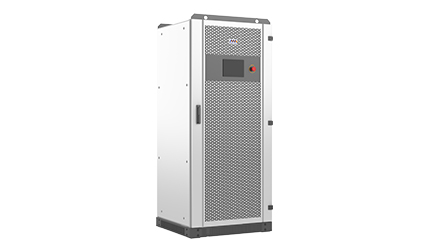

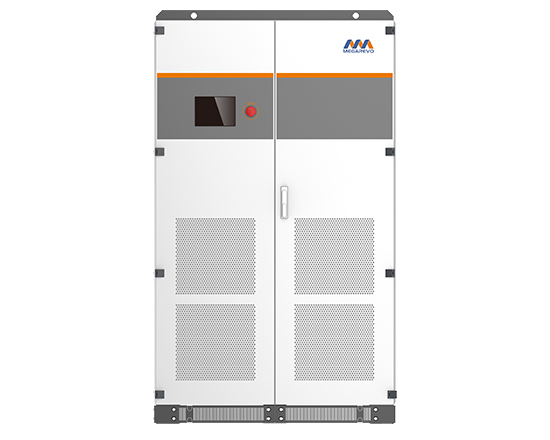

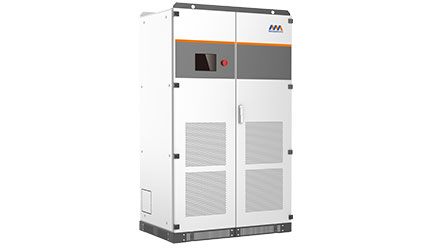

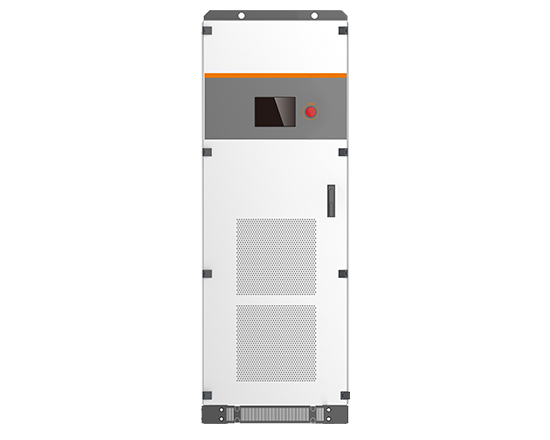

Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Product Highlights
Safe and reliable
Passed IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC certification test;
More than 400MW application cases , "zero" safety accident;
Flexible configuration
Support multiple sets of parallel use, covering wide power range of 30kW-3000kW;
Compatible with LFP , lead-acid and other batteries;
Convenient operation and maintenance
Built-in simple EMS function, support remote maintenance and monitoring;
With grid-connected charge and discharge, off-grid independent inverter function;
Support on/off grid automatic switching;
Choose our benefits

Create considerable economic benefits through flexible operating strategies

Improve the safety and reliability of the grid

Increase the use of renewable energy and reduce carbon emissions

Emergency backup power when power off

Avoid the upgrading of grid and achieve the expected effect quickly

MEGA0030TS/50TS MEGA0100TS/150TS MEGA0250TS MEGA0500TS
MEGA0030TS/50TS
Technical specificationMEGA0030TSMEGA0050TS
DC(battery)
Voltage range(V)250~850320~850
Max. current (A)137178
AC(on-grid)
Max output power(kVA)3355
Rate output power(kW)3050
Rated voltage(V)400
Voltage range(V)320~460
Rated current(A)4372
Max. output current(A)4880
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
AC(off grid)
Rated voltage(V)400
THDu＜1% Linear ＜5% Nonlinear
Rated frequency(Hz)50/60
Overload capacity110% long-term
General data
Max.efficiency96.3%96.5%
Ingress protectionIP21
Noise emission(dB）<70
Operating temperature (℃)-30～ 55
CoolingForced air
Relative humidity0 ~95% non-condensing
Operation altitude (m)5,000m(>3,000 Derating)
Dimension W*D*H (mm)800*800*1900
Weight（kg）605676
Transformer ratio100/400200/400
Self-consumption (W)<100
On/ Off grid switchingAutomatic
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communicationRS485, TCP/IP
CertificatesIEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC
MEGA0100TS/150TS
Technical specificationMEGA0100TSMEGA0150TS
DC(battery)
Voltage range(V)420~850
Max. current (A)270405
AC(on-grid)
Max output power(kVA)110165
Rate output power(kW)100150
Rated voltage(V)400
Voltage range(V)320~460
Rated current(A)144216
Max. output current(A)159238
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
AC(off grid)
Rated voltage(V)400
THDu＜1% Linear ＜5% Nonlinear
Rated frequency(Hz)50/60
Overload capacity110% long-term
General data
Max.efficiency97.1%
Ingress protectionIP21
Noise emission(dB）<70
Operating temperature (℃)-30～ 55
CoolingForced air
Relative humidity0 ~95% non-condensing
Operation altitude (m)5,000m(>3,000 Derating)
Dimension W*D*H (mm)800*800*1,900
Weight（kg）9361,057
Transformer ratio270/400
Self-consumption (W)<100
On/ Off grid switchingAutomatic
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communicationRS485, TCP/IP
CertificatesIEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC


MEGA0250TS
Technical specificationMEGA0250TS
DC(battery)
Voltage range(V)420~850
Max. current (A)673
AC(on-grid)
Max output power(kVA)275
Rate output power(kW)250
Rated voltage(V)400
Voltage range(V)320~460
Rated current(A)361
Max. output current(A)397
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
AC(off grid)
Rated voltage(V)400
THDu＜1% Linear ＜5% Nonlinear
Rated frequency(Hz)50/60
Overload capacity110% long-term
General data
Max.efficiency97.3%
Ingress protectionIP21
Noise emission(dB）<70
Operating temperature (℃)-30～ 55
CoolingForced air
Relative humidity0 ~95% non-condensing
Operation altitude (m)5,000m(>3,000 Derating)
Dimension W*D*H (mm)1,200*800*2,050
Weight（kg）1,582
Transformer ratio270/400
Self-consumption (W)<100
On/ Off grid switchingAutomatic
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communicationRS485, TCP/IP
CertificatesIEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC


MEGA0500TS
Technical specificationMEGA0500TS
DC(battery)
Voltage range(V)420~850
Max. current (A)1,128
AC(on-grid)
Max output power(kVA)550
Rate output power(kW)500
Rated voltage(V)400
Voltage range(V)320~460
Rated current(A)722
Max. output current(A)794
Rated frequency (Hz)50/60
Frequency range (Hz)45~55/55~65
THDi<3%
Power factor1lagging-1leading（Settable）
AC connection3W+N+PE
AC(off grid)
Rated voltage(V)400
THDu＜1% Linear ＜5% Nonlinear
Rated frequency(Hz)50/60
Overload capacity110% long-term
General data
Max.efficiency97.5%
Ingress protectionIP21
Noise emission(dB）<70
Operating temperature (℃)-30～ 55
CoolingForced air
Relative humidity0 ~95% non-condensing
Operation altitude (m)5,000m(>3,000 Derating)
Dimension W*D*H (mm)1,600*1,050*2,050
Weight（kg）2,665
Transformer ratio315/400
Self-consumption (W)<100
On/ Off grid switchingAutomatic
Display and communication
DisplayLCD touch-screen
BMS communicationRS485, CAN
EMS communicationRS485, TCP/IP
CertificatesIEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4,CGC
