>American ESS split- phase inverter

Please fill in the email and download the information immediately

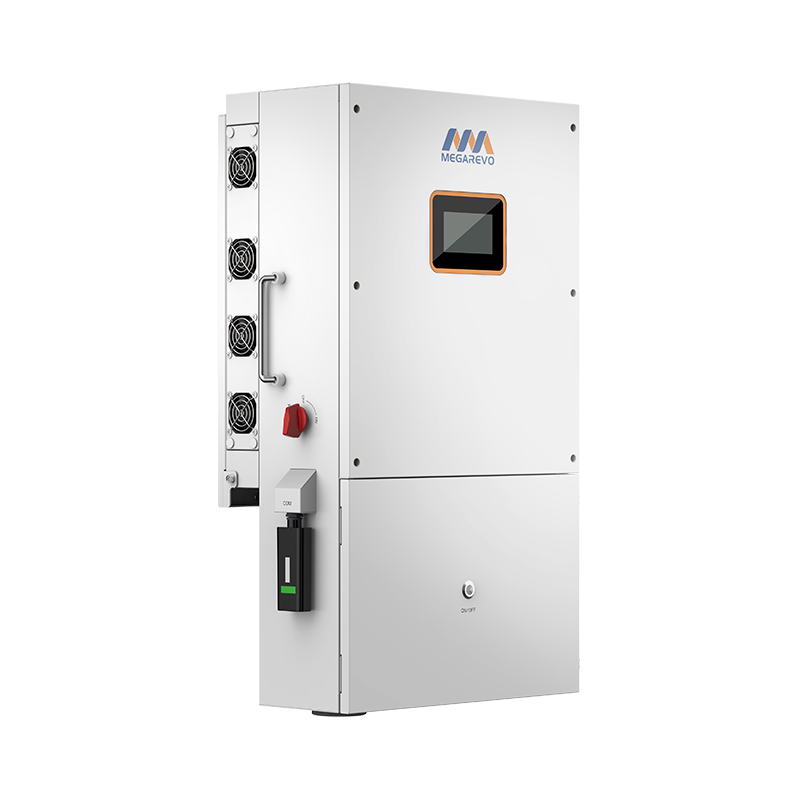

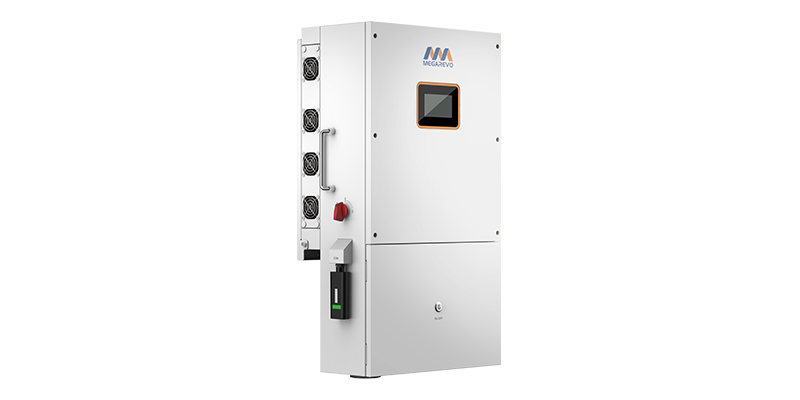

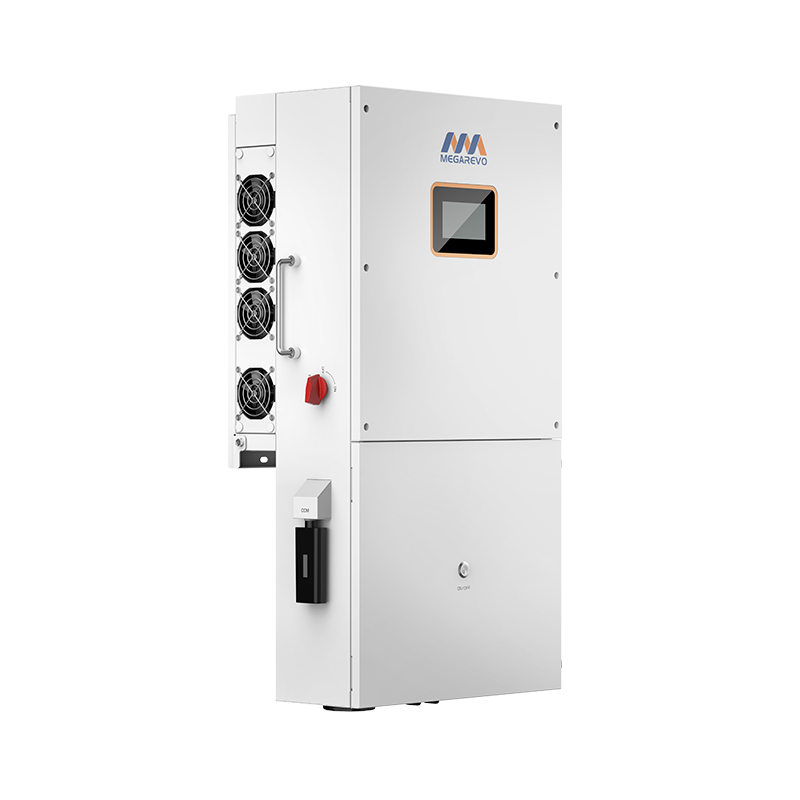

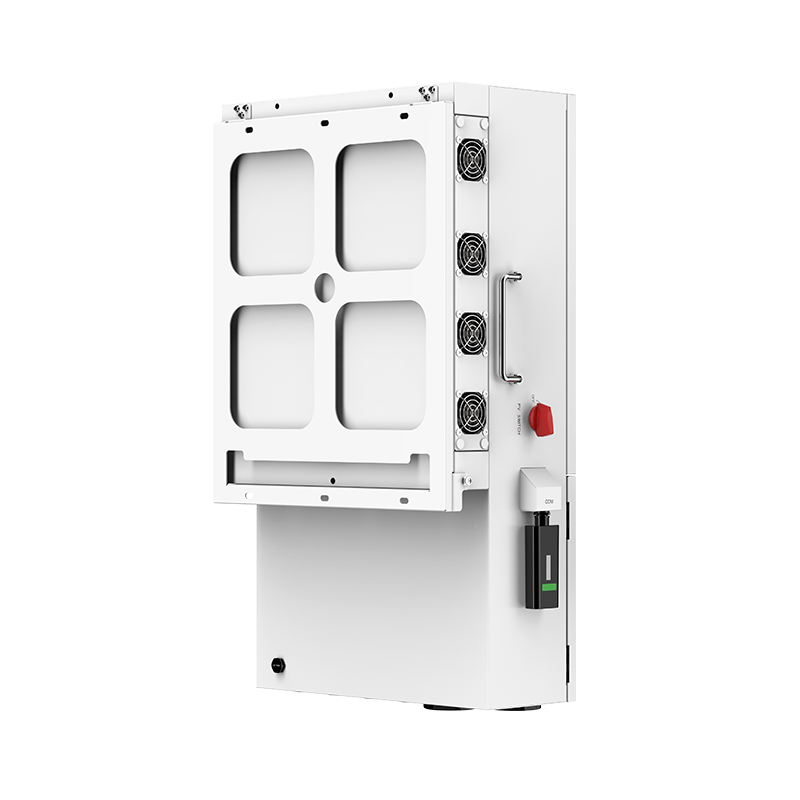

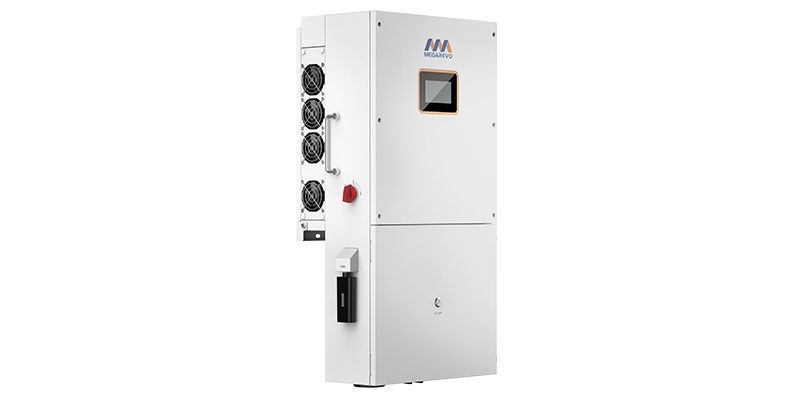

The Low-Voltage North American hybrid inverter series is specifically designed for home energy storage, operating at 48V with a split-phase configuration. The Megarevo hybrid inverter 48V can meet power demands of up to 10KW for various home energy storage applications. With support for parallel connection of up to 6 devices, Megarevo 48V split-phase inverters, coupled with an intelligent display, offer enhanced convenience for operation and maintenance.


American ESS split- phase inverter(battery voltage:48V)
American ESS split- phase inverter(battery voltage:48V)
American ESS split- phase inverter(battery voltage:48V)
American ESS split- phase inverter(battery voltage:48V)
American ESS split- phase inverter(battery voltage:48V)
American ESS split- phase inverter(battery voltage:48V)
Product Highlights
Safe and Reliable
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification.
Friendly and Flexible
Support multi-machine parallel connection.
Support multi-machine parallel mode sharing a battery pack
Single-machine load capacity 100A.
Economical and Efficient
Support parallel SOC equalization control and parallel current sharing control.
Using split-phase topology and eliminating the transformers, to make the system efficiency higher. Support the diesel generator and the grid access at the same time.
Choose our benefits

Reduce electricity costs by 50% per year

Free energy available at night

Participate in peak load shifting to gain additional economic benefits

Keeping critical load operation in power off

Support 7*24 remote service

Technical specificationR5KLNAR6KLNAR8KLNAR10KLNA
Input (PV)
Max. power(kW)7.591213
Max. DC voltage (V)500
MPPT voltage range(V)125~500
Max.Input current of single MPPT(A)14
MPPT tracker/strings4/1
AC output
Rated output power(kVA)56810
Max. apparent Power (kVA)5.56.68.811
Rated output current (A)20.82533.341.7
AC output voltage(V)120/240(split phase),240 (single phase)
Frequency (Hz)50 /60
PF0.8lagging-0.8leading
THDi<2%
AC output topologySplit phase, 2/3 phase, single phase
Battery
Battery voltage range(V)40~58
Max. charging voltage(V)58
Max. charge/discharge current(A)120/120135/135190/190210/210
Battery typeLithium /Lead-acid
Communication interfaceCAN
EPS output
Rated power (kVA)56810
Rated output voltage(V)120/240 (split phase),240 (single phase)
Rated output current(A)20.82533.341.7
Rated frequency(Hz)50/60
Automatic switching time (ms)<10
THDu<2%
Overload capacity110%/60s, 120%/30s, 150%/10s
General data
MPPT efficiency99.9%
CEC efficiency96.5%
Ingress protectionIP65/NEMA 3R
Noise emission(dB)<38<38<38<38
Operation temperature (℃)-25 ~ 60 (>45 Derating)
CoolingForced air
Relative humidity0 ~95%(non-condensing)
Operation altitude (m)2,000 (>2,000 Derating)
Dimensions W * D * H (mm)460*225*760
Weight(kg)41
Isolation transformerNo
Self-consumption(W)<25
Display and communication
DisplayLCD/ touch screen
Interface:RS485/Wifi/4G/ CAN/BluetoothYes
Safety standardUL1741, CSA C22.2 No. 107.1:16,UL1998
EMCFCC Part 15, Class B
On-gridIEEE1547, CPUC Rule21, SRD V2.0, UL1741 SA, UL1741 SB
DC ARC-FaultUL1699B
