>Single-phase ESS hybrid inverter

Please fill in the email and download the information immediately

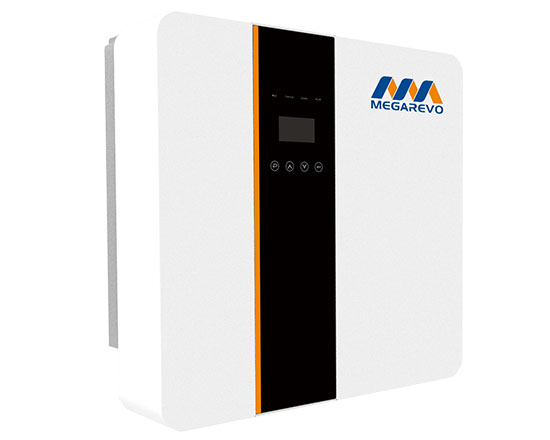

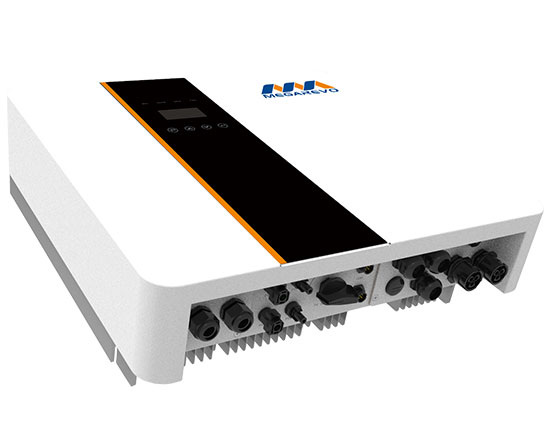

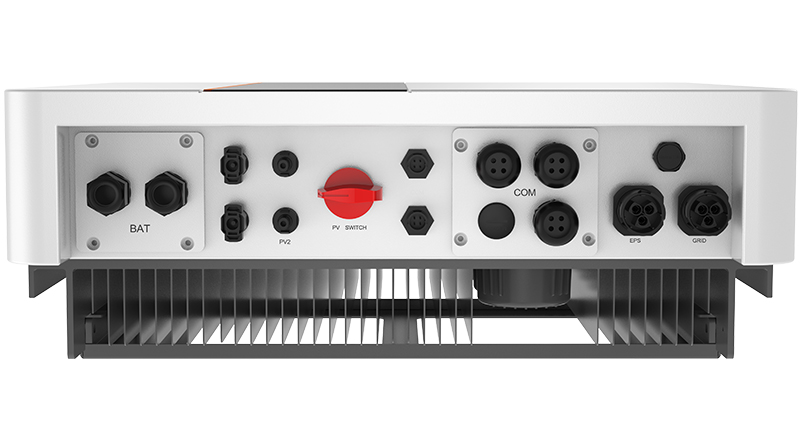

The L1 Series 3-6kW low-voltage hybrid inverter, including the 5kW hybrid inverter, offers extensive compatibility with multiple power sources. It supports the simultaneous input of PV, batteries, diesel generators, power grids, and loads. Its versatile application modes, such as self-consume, peak shaving and valley filling, and backup power supply, cater to diverse energy management needs. Moreover, this hybrid inverter allows for parallel connection of multiple machines, making it suitable for various home energy storage applications. The Megarevo 3kW-6kW single-phase hybrid inverter, equipped with an advanced built-in MPPT charge controller, operates within an acceptable input voltage range of 125~500VAC.


Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Single-phase ESS hybrid inverter
Product Highlights
Safe and reliable
Passed IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1:2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 test certification
Flexible configuration
Support multi-parallel connection
Support flexible access of diesel generator
Compatible with lead-acid and lithium-ion battery
Convenient operation and maintenance
Support intelligent EMS management function;
Support on/off-grid automatic switching function to ensure uninterrupted power when important loads are off-grid
Choose our benefits

Reduce electricity costs by 50% per year

Free energy available at night

Participate in peak load shifting to gain additional economic benefits

keeping critical load operation in power off

Support 7*24 remote service

Technical specification R3KL1R3K6L1R4KL1R4K6L1R5KL1R6KL1
Input (PV)
Max. power(kW)4.64.66677
Max. DC voltage(V)550
MPPT voltage range(V)125~500
MPPT voltage range@full load (V)150-500150-500170-500170-500220-500220-500
Max.input current of single MPPT(A)14
No. of PV strings per MPPT tracker1
AC output
Rated output power(kVA)33.6844.656
Max. output current(A)13
1617.42021.726
Grid voltage/range(V)230/176~270
Frequency (Hz)50 / 60
PF0.99lagging-0.99leading
THDi<3%
AC output topologyL+N+PE
Battery
Battery voltage range(V)40~58
Max. charging voltage(V)58
Max. charge/discharge current(A)95/62.295/76.595/83.395/95.895/104.295/110
Battery typeLithium /Lead-acid
Communication interfaceCAN
EPS output
Rated power (kVA)33. 6844.656
Rated output voltage(V)230
Rated output current(A)13
1617.42021.726
Rated frequency (Hz)50 / 60
Automatic switching time (ms)<10
THDu<2%
Overload capacity110%, 30S/120%, 10S/150%, 0.02S
General data
Battery chage/dischage efficiency95.0%
DC Max. efficiency97.6%
Europe efficiency97.0%
MPPT efficiency99.9%
Ingress protectionIP65
Noise emission (dB)<40
Operation temperature-25 ~ 60 (Derating at 45℃)
CoolingNatural
Relative humidity0 ~95%(non-condensing)
Operation altitude (m)2,000 (>2,000 Derating)
Dimensions W * D * H (mm)550*200*520
Weight (kg)25
Isolation transformerNo
Self-consumption(W)15~25
Display and communication
Display LCD
Interface:RS485/Wifi/4G/ CAN/DRMYes/ Opt/ Opt/ Yes/ Yes
Safety standardIEC/EN62109-1/-2
EMCIEC/EN 61000-6-1, IEC/EN 61000-6-3
On-grid

South Africa NRS097-2-1:2017, UK G98,G99,EN 50549-1,Italy CEI 0-21, Germany VDE4105,IEC61727/62116/61683, Sweden EIFS 2018: 2
