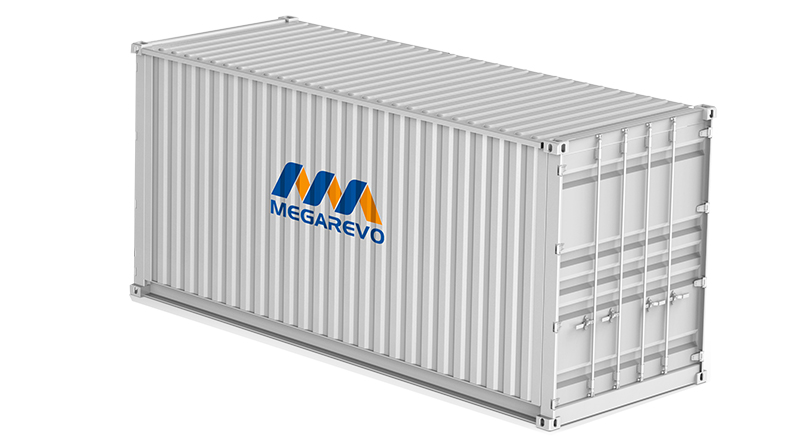

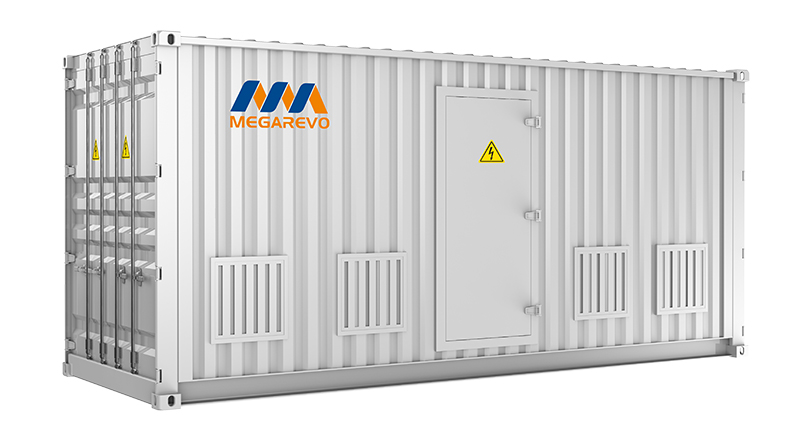

Megarevo's container type energy storage booster is the core component of peak and frequency regulation of large-scale energy storage power stations.

It supports multiple sets of battery input and comprehensively improves battery cycle life. In addition, the system integrates various booster systems, and support turnkey service.

Container type energy storage booster
Container type energy storage booster
Container type energy storage booster
Container type energy storage booster
Container type energy storage booster
Container type energy storage booster
Container type energy storage booster
Container type energy storage booster
Product Highlights
Safe and reliable
Support multiple battery input to improve battery cycle life;
High switching frequency design, low current ripple and high power quality;
Economical & friendly
Support parallel connection, expandable to MW level;

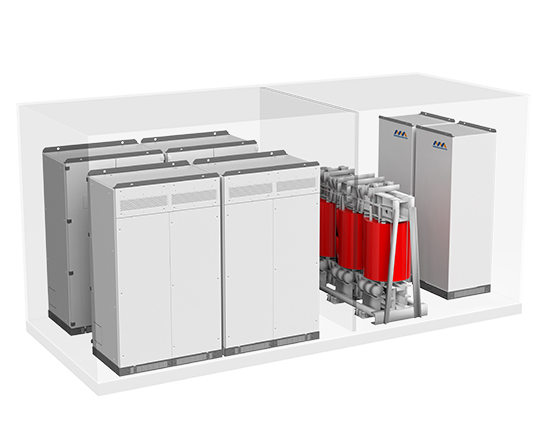

Integrated converter and transformer system, it is more competitive;
Intelligent and efficient
Up to 98% conversion efficiency;
With on-grid charge and discharge, off-grid independent inverter function;
Built-in EMS function to improve energy efficiency management;
Choose our benefits

Pre-assembled design for easy installation and transportation

Strong Extensibility

AC and DC dual power backup

Meet industry-leading safety standards

Support 7*24 remote service

Technical specificationESSC1000A-MV35ESSC1260A-MV35ESSC2000A-MV35ESSC2500A-MV35
DC(battery)
Battery voltage range(V)500~900
AC(on-grid)
Rate output power(kW)1000126020002500
Rated voltage(kV)35
Voltage range(kV)38.5±2×2.5%(6、10、22)optional
Rated current(A)16.520.83341.2
Rated frequency(Hz)50 /60
AC connection3W+PE
General data
Max.efficiency98%
Dimension W*D*H (mm)4300*2438*2591  4300*2438*2591    6058*2438*2591  6058*800*2050
Weight(kg)4500450080008000
Booster transformerManual (default)/ Automatic (optional)
BMS communicationRS485/CAN
EMS communicationRS485, TCP/IP
